NSW Rainwater Tank Specifications

Built to Last

All Coolamon Concrete Tanks are built to the highest specifications and are fully engineer-designed.

At the very minimum, our tanks are designed to comply with the relevant Australian Standards which include:

AS3600 – Concrete Structures, AS1379 – Ready Mixed Concrete, AS1302 – Deformed Bars, AS1304 – Welded Fibre Fabric, AS3610 – Formwork for Concrete,

AS3735 – Concrete Structures Retaining Liquids

We have many different Tank designs, from the basic passenger vehicle load to a super heavy-duty W8 (8 tonnes per wheel) load. We can have a Tank designed to meet any load requirements or specific uses.

Because of the proprietary information contained in our Engineer Drawings, they are not published on this website. However, we are happy to supply our full Engineer Drawings upon request.

Our Rainwater Tank Specifications

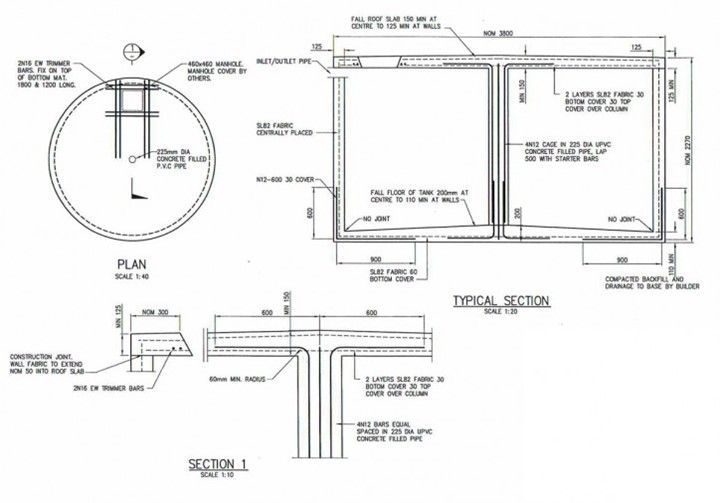

  • 20,000 Litre Tank — Coffs Harbour, NSW — Coolamon Concrete Tanks

    Slide title

    Write your caption here
    Button

20,000 LITRE TANK

Diameter: 3.8m height 2.27m

Materials Used: 32 mpa vibrated concrete, 125mm walls, F82 steel mesh in walls and floor and a double layer of F82 steel mesh in lid, 1 x 225mm concrete filled pier supporting the lid (Engineered to carry vehicular load) wall and floor steel tied in with Y12 bar.

30,000 LITRE TANK

Diameter: 4.6M Height: 2.27M

Materials Used: 32mpa vibrated concrete, 100mm thick walls, F82 steel mesh in walls and floor and a double layer of F82 in lid, 3 x 150mm concrete filled piers supporting lid (Engineered to carry vehicular load) wall and floor steel tied in with Y12 bar

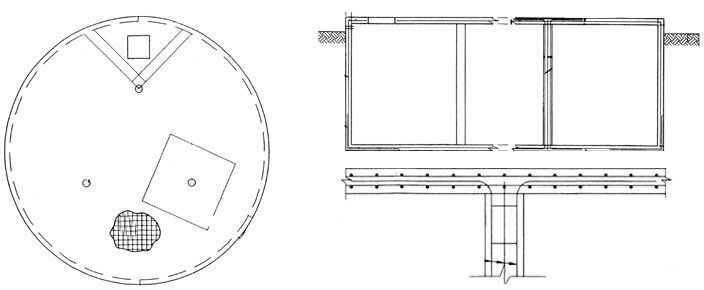

  • 30,000 Litre Tank — Coffs Harbour, NSW — Coolamon Concrete Tanks

    Slide title

    Write your caption here
    Button

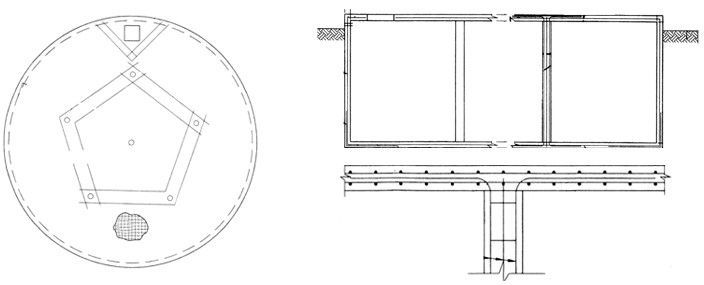

  • 90,000 Litre Tank — Coffs Harbour, NSW — Coolamon Concrete Tanks

    Slide title

    Write your caption here
    Button

90,000 LITRE TANK

Diameter: 7.75M Height: 2.27M

Materials Used: 32mpa vibrated concrete, 125mm thick walls, F82 steel mesh in floor and doubleA layer of F82 in the lid, F818 used in walls, 6 x 150mm concrete filled piers (225mm piers used if vehicular load is required) wall and floor steel tied in with Y12 bar.

Ready to get started? Reach us at 02 6653 7357 for expert guidance and solutions!
